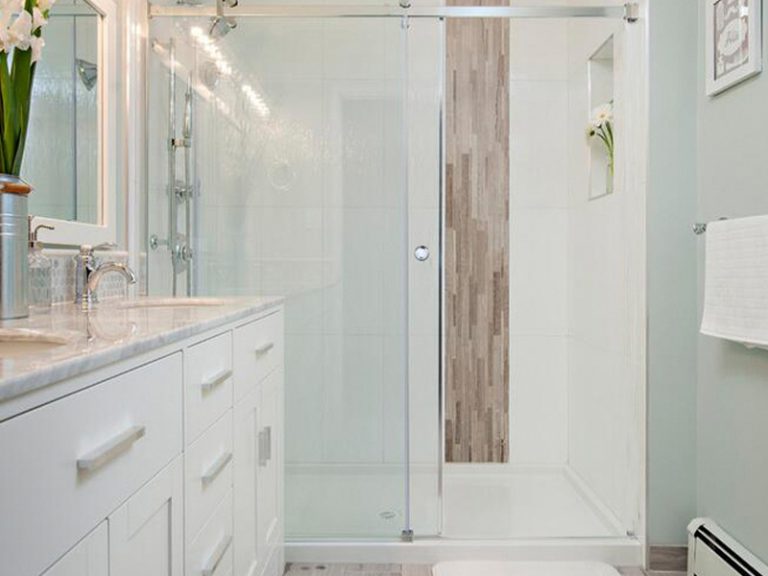

DU809 Sliding Shower Door System

Item No:Z-DU809

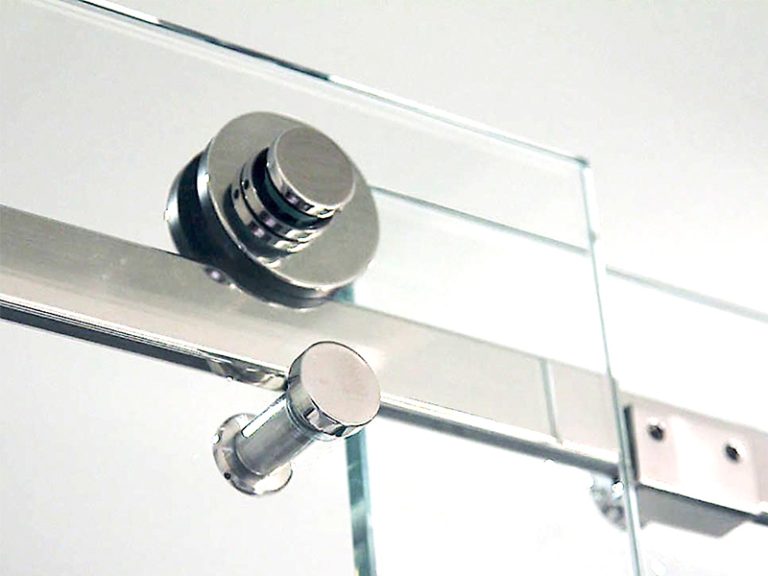

Unique 180 Degree System With Rollers Above and Below the Header Bar .
System Features One Sliding Door and One Fixed Panel.

Tempered glass have SGCC and CE certificates.

Glass Type: Clear Glass, Ultra-Clear Glass, Opaque Glass, Polar Glass, Broze Glass, Grey Glass

Glass Thickness: 5/16″(8mm), 3/8″(10mm), 1/2″(12mm)

Customize Glass Size: The minimum width is 22″(558mm) and up to 32″(812mm) maximum. The maximum height will be 98″(2490mm).

Special Design: More holes / Logo can be printed / Explosion-proof film / Hardware options available

Hardware Material: Stainless Steel 304.

Hardware Finish: SSS/PSS/MBL/ORB

Product Details

Glass Type

Clear Glass HD Glass Opaque Glass Polar Glass Bronze Glass Grey Glass
A clear experience An ultra-clear choice A sand-blasted option A textured, private note A warm brown tint A smokey gray shade



Specifications

Glass Type Clear Glass, Ultra-Clear Glass, Opaque Glass, Polar Glass, Broze Glass, Grey Glass
Size The minimum width is 22″(558mm) and up to 32″(812mm) maximum. The maximum height will be 98″(2490mm).
Glass Thickness 5/16”(8mm), 3/8”(10mm), 1/2”(12mm)
Edge Works Polished flat edge
Corners Safety Corners
Strength Tempered
Hinge Cuts 2(More hinge cuts are available)
Holes 2(More holes are available)
Printed Logo Available(Option)
Explosion-proof film Available(Option)
Hardware Available(Option)
Installation Tools Yes



Public Errand

Glass Thickness tolerance ±0.2mm
Size Tolerance ±0.5mm
Hinge Cuts tolerance +1mm
Holes Diameter Ø 5- 100mm, Tolerance ±0.2mm

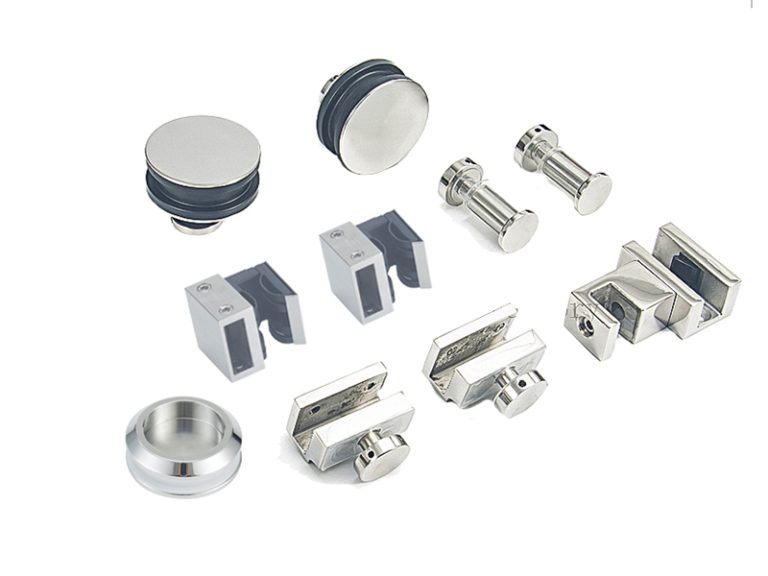

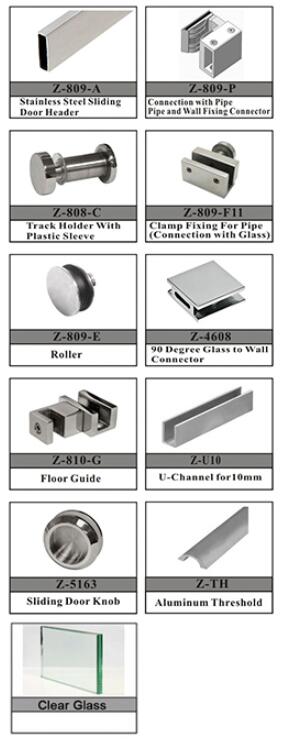

Hardware Options
