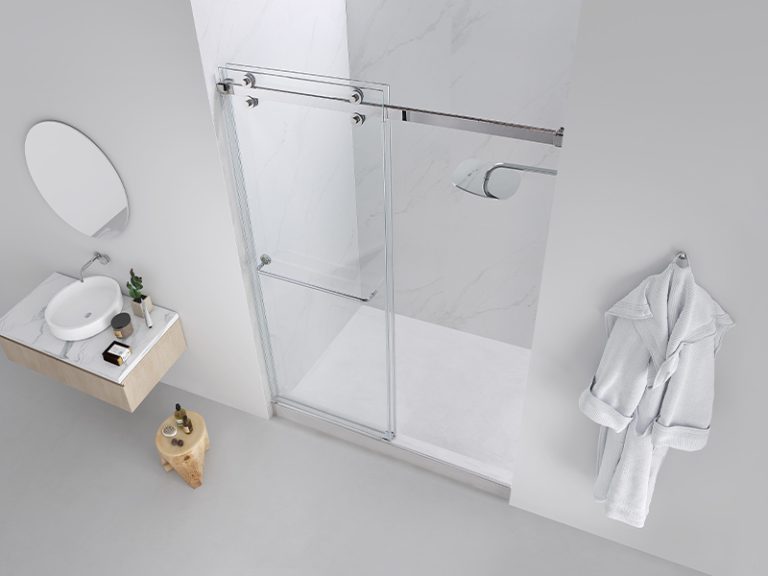

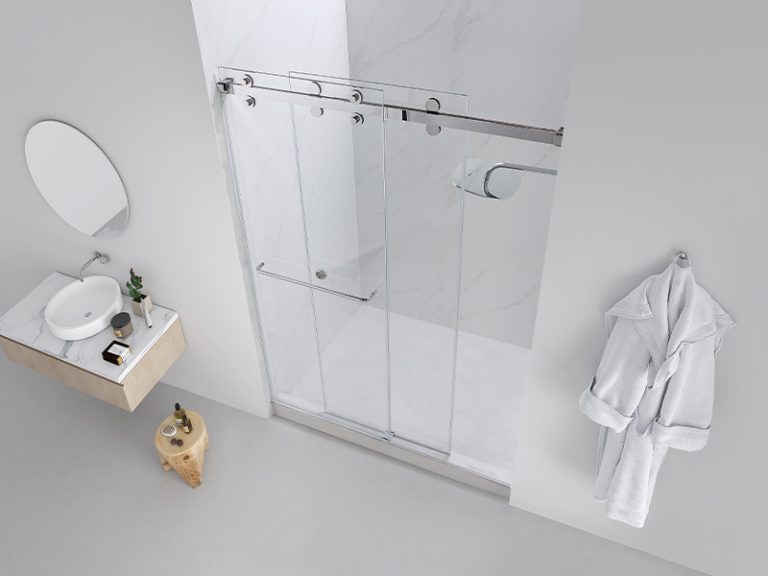

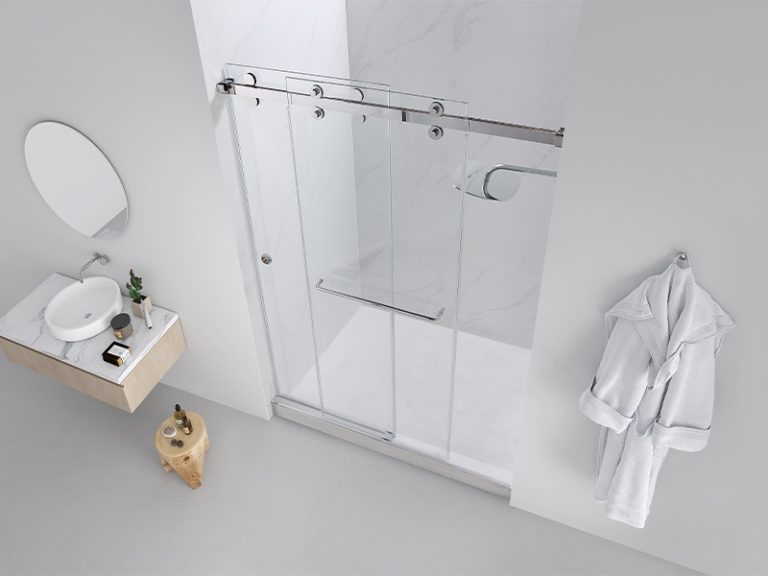

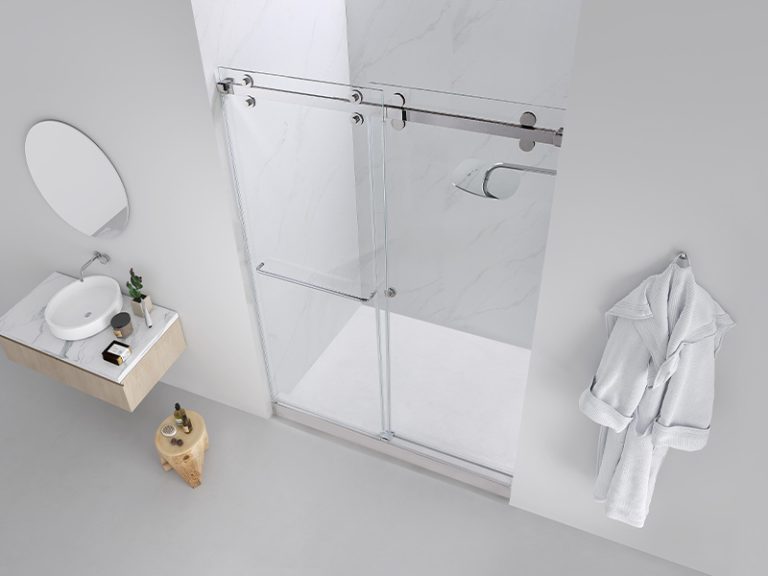

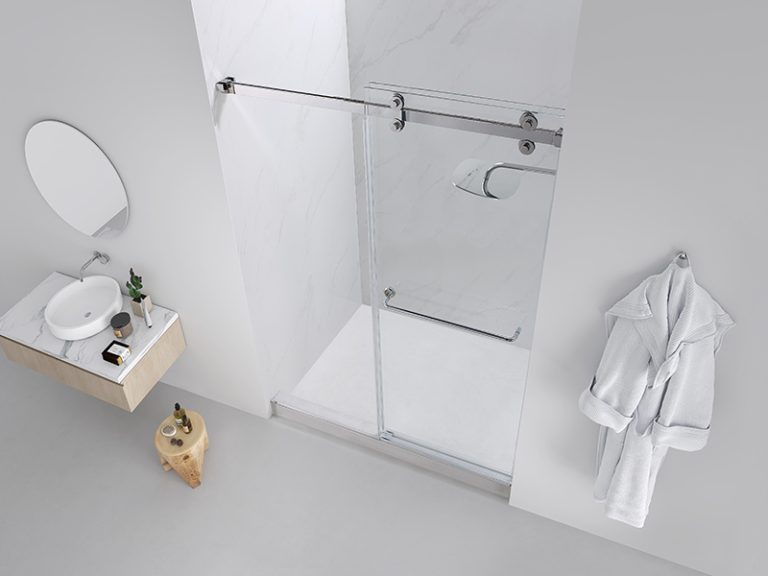

DU889 Sliding Shower Door System

Item No:Z- DU889

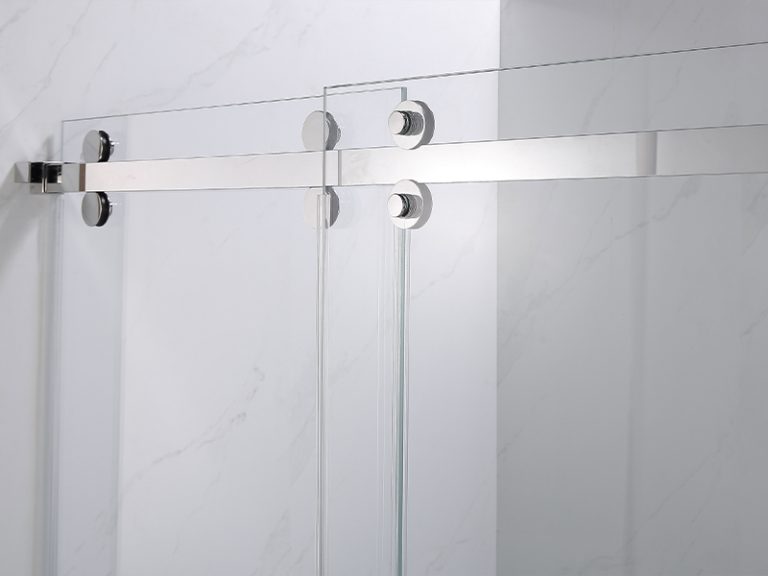

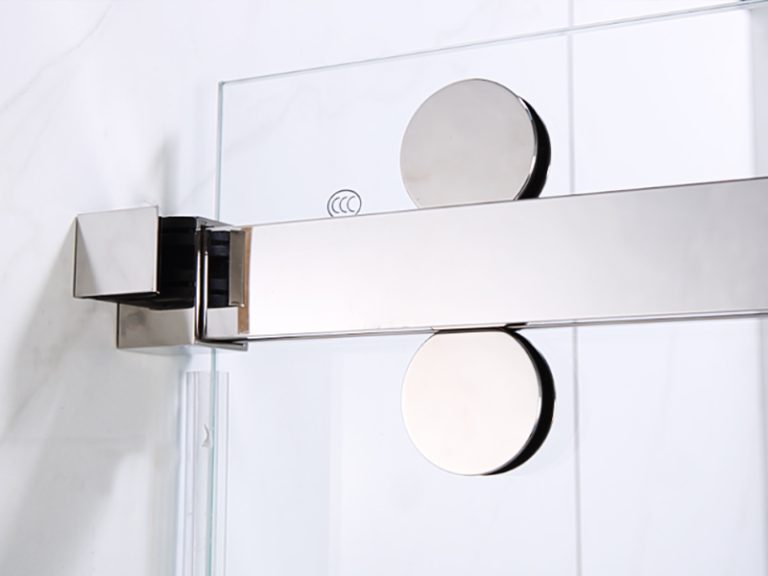

Unique 180 Degree System With Rollers Above and Below the Header Bar.
System Features One Sliding Door and One Fixed Panel.

Tempered glass have SGCC and CE certificates.

Glass Type: Clear Glass, Ultra-Clear Glass, Opaque Glass, Polar Glass, Broze Glass, Grey Glass

Glass Thickness: 5/16″(8mm), 3/8″(10mm), 1/2″(12mm)

Customize Glass Size: The minimum width is 22″(558mm) and up to 32″(812mm) maximum. The maximum height will be 98″(2490mm).

Special Design: More holes / Logo can be printed / Explosion-proof film / Hardware options available

Hardware Material: Stainless Steel 304.

Hardware Finish: SSS/PSS/MBL/ORB

Product Details

Glass Type

Clear Glass HD Glass Opaque Glass Polar Glass Bronze Glass Grey Glass
A clear experience An ultra-clear choice A sand-blasted option A textured, private note A warm brown tint A smokey gray shade



Specifications

Glass Type Clear Glass, Ultra-Clear Glass, Opaque Glass, Polar Glass, Broze Glass, Grey Glass
Size The minimum width is 22″(558mm) and up to 32″(812mm) maximum. The maximum height will be 98″(2490mm).
Glass Thickness 5/16”(8mm), 3/8”(10mm), 1/2”(12mm)
Edge Works Polished flat edge
Corners Safety Corners
Strength Tempered
Hinge Cuts 2(More hinge cuts are available)
Holes 2(More holes are available)
Printed Logo Available(Option)
Explosion-proof film Available(Option)
Hardware Available(Option)
Installation Tools Yes



Public Errand

Glass Thickness tolerance ±0.2mm
Size Tolerance ±0.5mm
Hinge Cuts tolerance +1mm
Holes Diameter Ø 5- 100mm, Tolerance ±0.2mm

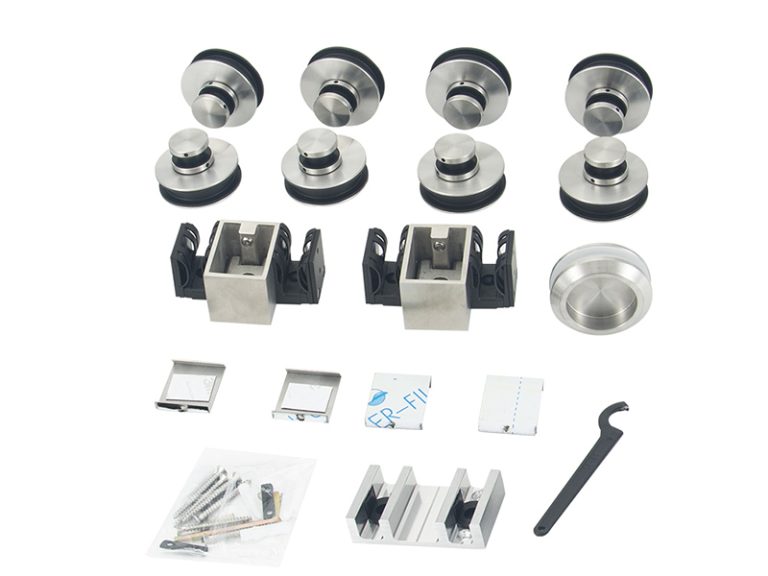

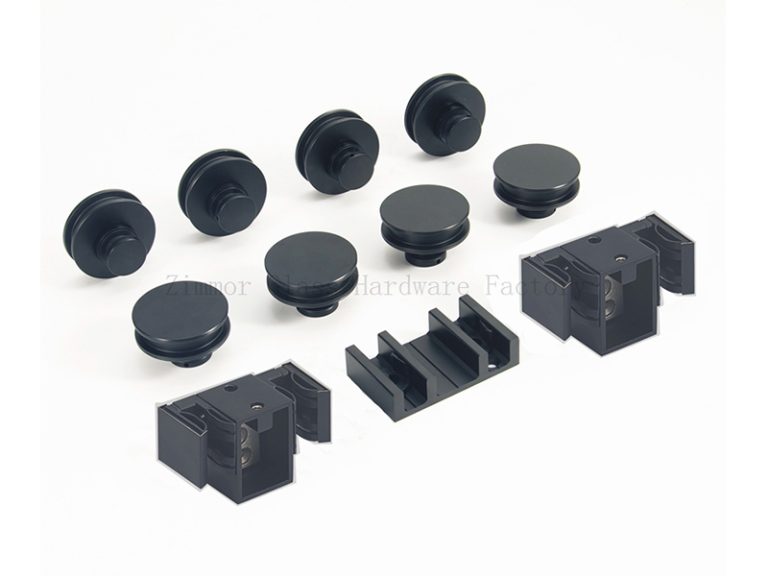

Hardware Options
